The valve magnet board goes digital

The drill-floor magnet board, rebuilt as a large touch screen. Pressure paths calculate as you line up — and every screen on the rig shows the same truth.

Request a demo Watch it run

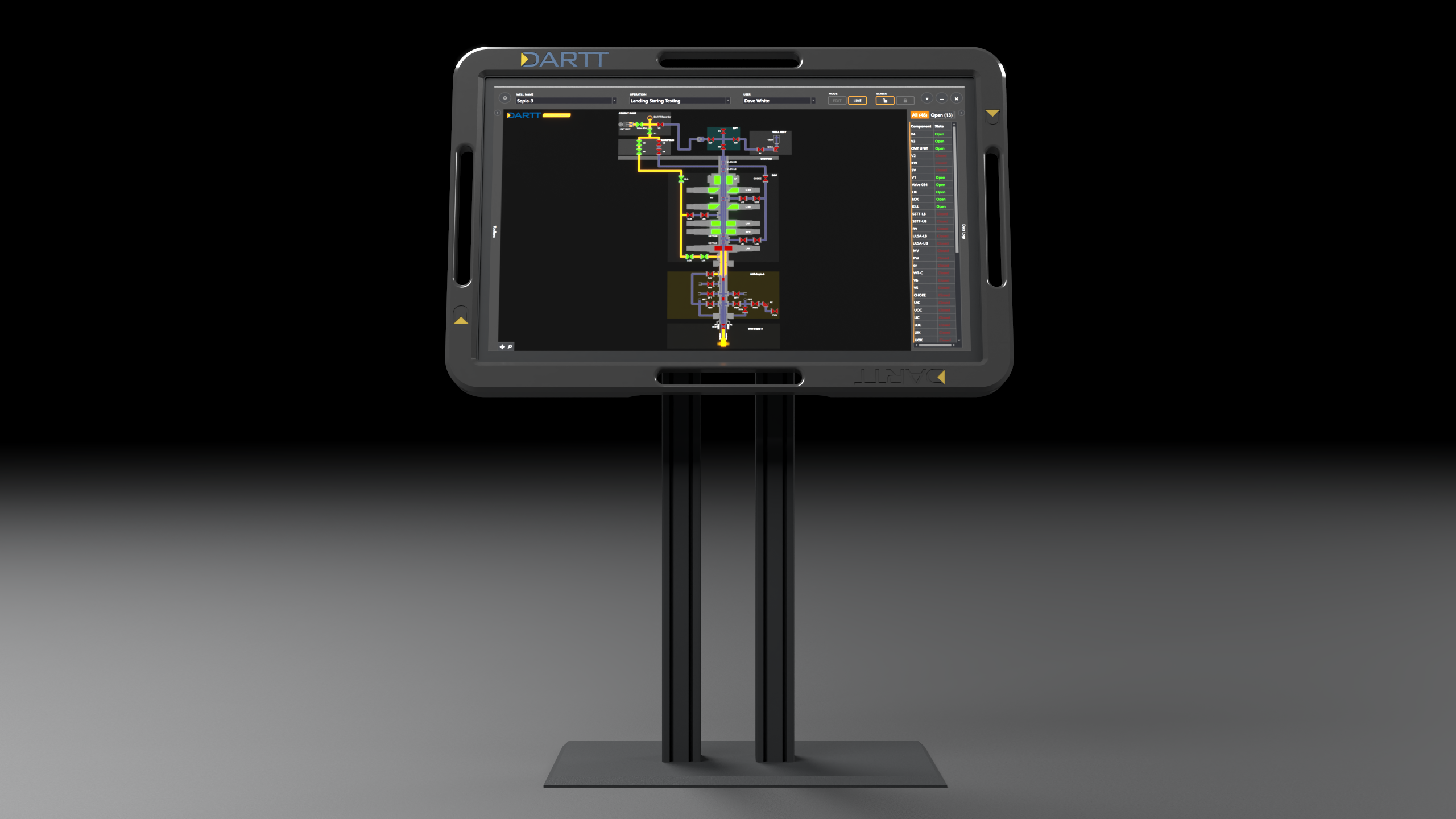

DARTT VSB — touch screen panel PC on stand
LIVE PRESSURE PATHS
FULL AUDIT TRAIL
MIRRORED TO ANY SCREEN
RECORDED OFF THE BOARD

Watch a line-up happen

Valves operated by touch, the pressure path re-tracing itself, and every change logged.

DRAWING AUTHORING

Drawing is simple

Drawing a DARTT Valve Status Board uses the drafting controls you already know, object snapping, axis locking and re-usable drawing blocks, to name a few. Fast and easy.

THE INCUMBENT
THE OLD WAY

The magnet board.

It lives on one wall
If you're not standing in front of it, you can't see it.
It has no memory
Move a magnet and the previous state is gone. No record, no audit trail.
One board per operation
Drawings are not editable
CAPABILITY
MAGNET BOARD
DARTT VSB
{{ row.label }}
{{ row.magnet }}
YES
SIMPLE OR COMPLEX DRAWINGS

Pressure paths are calculated as you go

No more mentally tracing lines across the board. The DARTT VSB knows where pressure can reach the moment a valve opens or closes. Excellent for workshopping troubleshooting steps before anyone touches barriers.

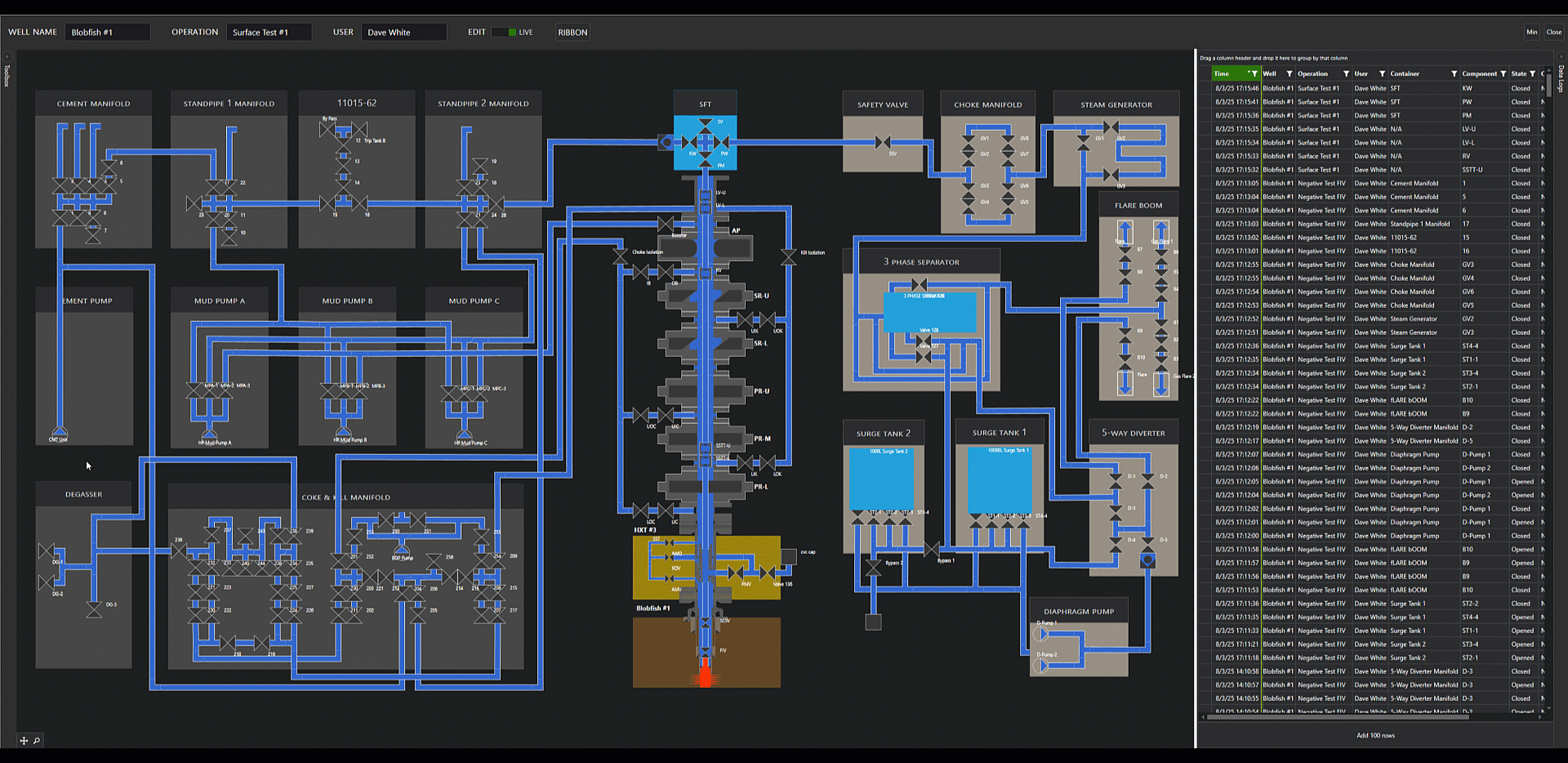

Pressure paths recalculating live on a surface test schematic

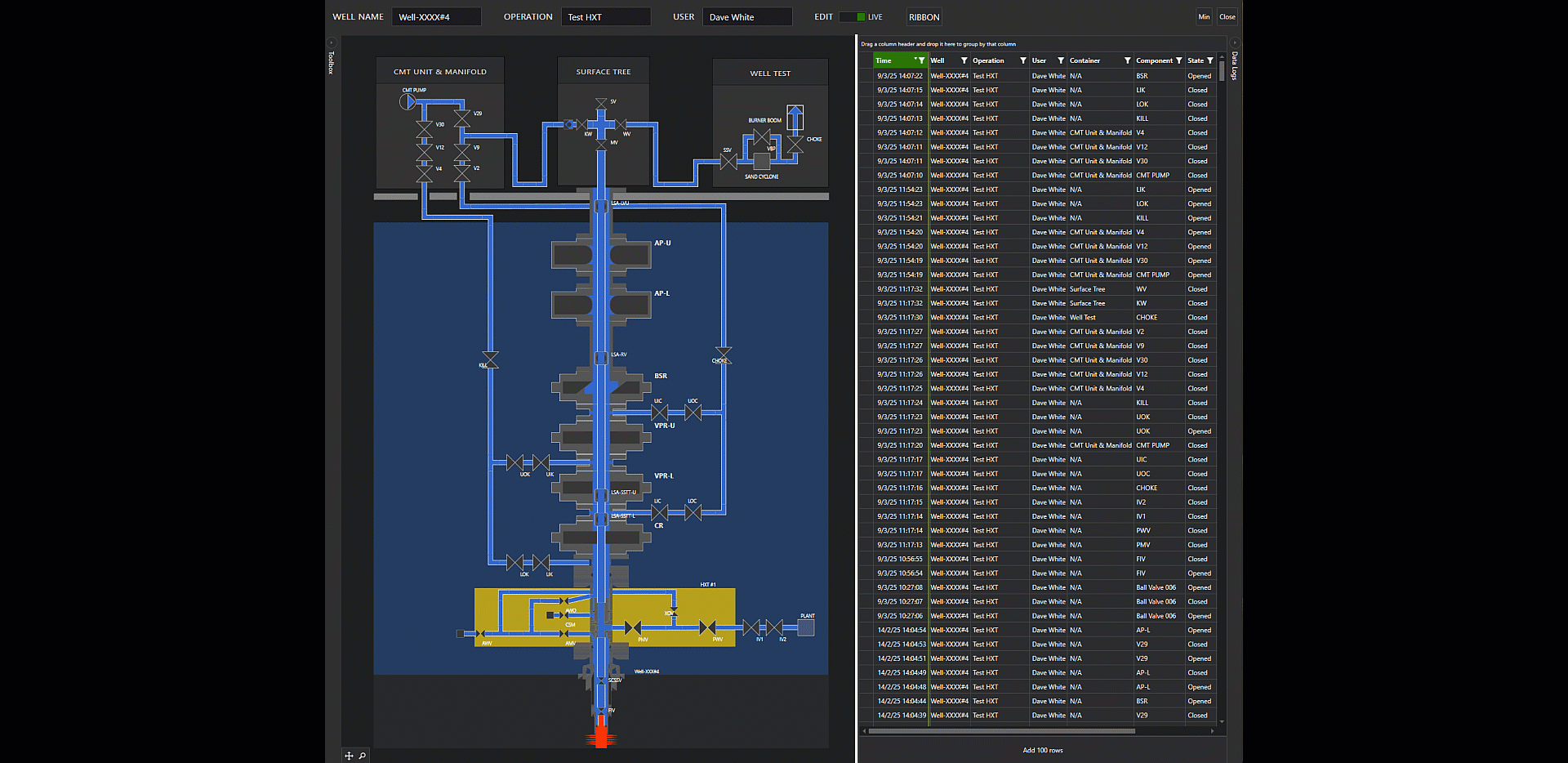

Valve changes landing in the data log
AUDIT TRAIL

Every valve change is recorded

Who, what and when, logged automatically as the board is operated. Valves can be grouped, and tables sort by valve, time or operation.

MIRRORING

One master board, mirrored everywhere

The board in the drill-floor control cabin is the master and operated by the person in charge. Every other screen is a live viewer of the same board, at the same moment.

MASTER · BOARD OF RECORD
Drill-floor control cabin
Valve changes are made here — and only here.
{{ v.tag }}
{{ v.name }}
Live viewer
COMPLETION ENGINEERS DRILLING SUBSEA TOWN & CLIENT OFFICES
HARDWARE

Built to travel offshore

A ruggedised touch-screen panel PC running the DARTT VSB software c/w a range f stands and shipped in a hard transport case.

COMPONENTS Touch-screen panel PC · Stand · Transport case
CASE DIMENSIONS 121.92 × 88.9 × 36.83 cm
WEIGHT ~45 kg, packed
SLAVE SCREENS Any networked display or device

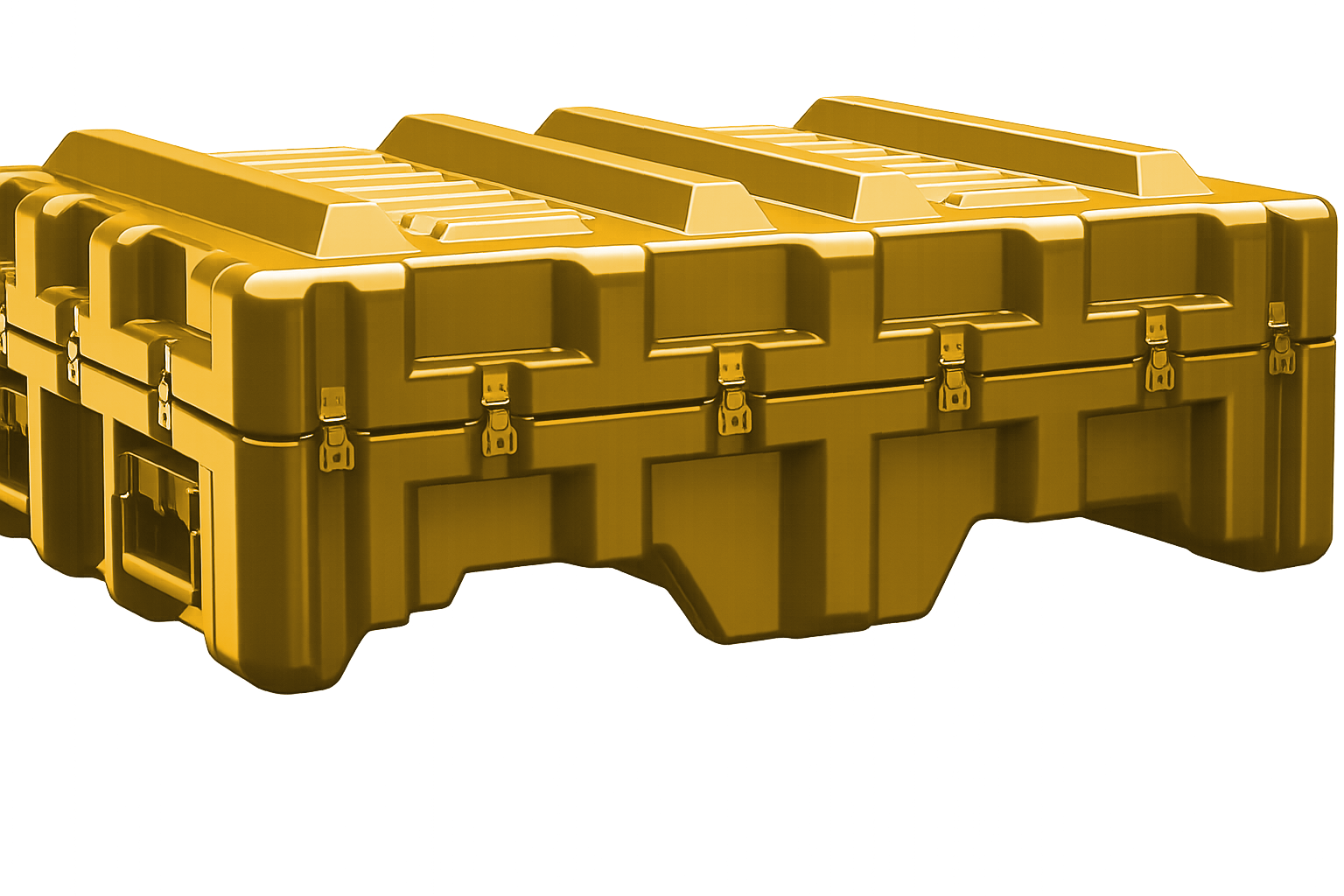

Ruggedised transport case
RUGGEDISED TRANSPORT CASE
WHERE THIS IS GOING

The board is step one

✓ AVAILABLE NOW
Standalone mimic board
Live line-ups, pressure tracing, logging and mirrored views — the product on this page.
90% — IN FIELD TRIM
Pressure-test sequence drawing
Build the full test sequence on the board, step through each line-up, export the drawings for the program.
IN DEVELOPMENT
Hosted client site
Clients build circuits in the browser and export them to the Dartt Recorder or the VSB on the rig.

See it before your next campaign

The DARTT VSB is available now. Write to us and we'll set up a live run-through on a real line-up.
